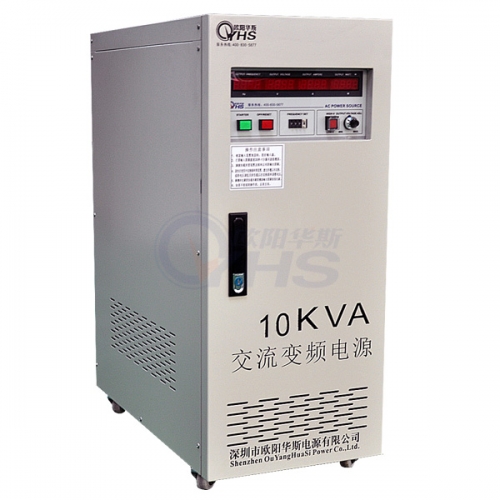

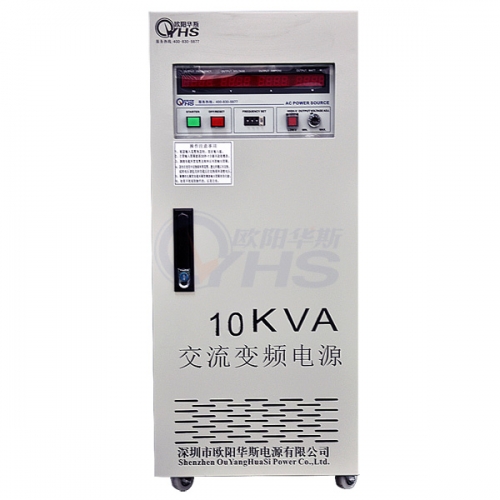

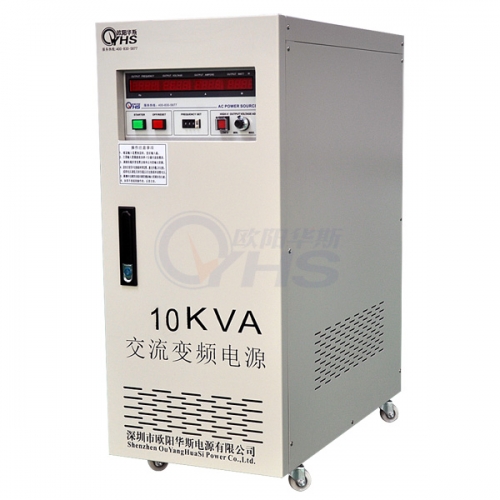

10KVA variable frequency power supply

Leave Messages

10KVA variable frequency power supply technical parameter (OYHS-98810)

Shenzhen Ouyang Huasi Power Co., Ltd.

Contact: Mr. Ouyang

Tel: 0755-23088216 (switchboard)

Fax: 0755-23088220

Mobile: 13418992245

URL: www.ouyanghuasi.net

Address: Shenzhen city Longhua District, Dalang Street Village Industrial Zone with rich waves

Common features of products



Output voltage: 0-300V, adjustable continuously

Output frequency: 60HZ, 50HZ, 40-499.9HZ, adjustable continuously

Super counted ability, instantaneous current can withstand three times rated current

One stop function during the failure, the reaction speed is fast, the reaction time is less than 2ms

It has many protections such as over current, over voltage, over temperature, short circuit, overload and so on

High precision frequency stabilizing and voltage stabilizing function, quickly adjust voltage and frequency

The main components are imported brand, the quality is reliable

Three single variable frequency power supply technical parameters

ModelOYHS-98810

Output capacity 10KVA

Circuit mode

IGBT/SPWM pulse width modulation

AC input

Phase number

Three-phase

Wave form

SINEWAWE

Voltage

380V±10%

Frequency fluctuation range

50HZ or 60HZ±5%

Power factor

﹥0.9

AC output

Phase number

Single-phase

Wave form

SINE  WAVE

Low voltage

0-150V Continuously adjustable

High voltage

0-300V Continuously adjustable

frequency

  60HZ50HZ40-499.9HZ Continuously adjustable

Frequency stability

≤0.01%

Low max current (A)

83A(0-150V)

Premium maximum current (A)

42A(150-300V)

Overall performance

Power voltage regulation rate

﹤1%

load regulation

﹤1%

Waveform distortion

﹤1%

Efficiency

﹥90%

Reaction time

≤2ms

Crest factor

3:1

Protector

With overvoltage, overcurrent, overload, input undervoltage, over high temperature, short circuit and other multiple protection

display

Display interface

Digital LED display

Voltage

4 digit, digital voltmeter, resolution 0.1V

Electric current

4 digit, digital ammeter, resolution 0.1A

Power

4 digit, digital wattmeter

Frequency

4 digit frequency table

Environment and other

Cooling system

High speed variable frequency fan cooling, forced air cooling

Working temperature

-10℃ to  50℃

Relative humidity

090%(non-condensing

Altitude

≤1500m

Weight (KG)                    155

Size (H*D*Wmm         790*650*350

Notes1 The above dimensions do not include the height of the foot

2 It can be customized according to customer's specifications

3 The company's product specifications continue to improve R & D, specifications are subject to change without notice
